Products Description

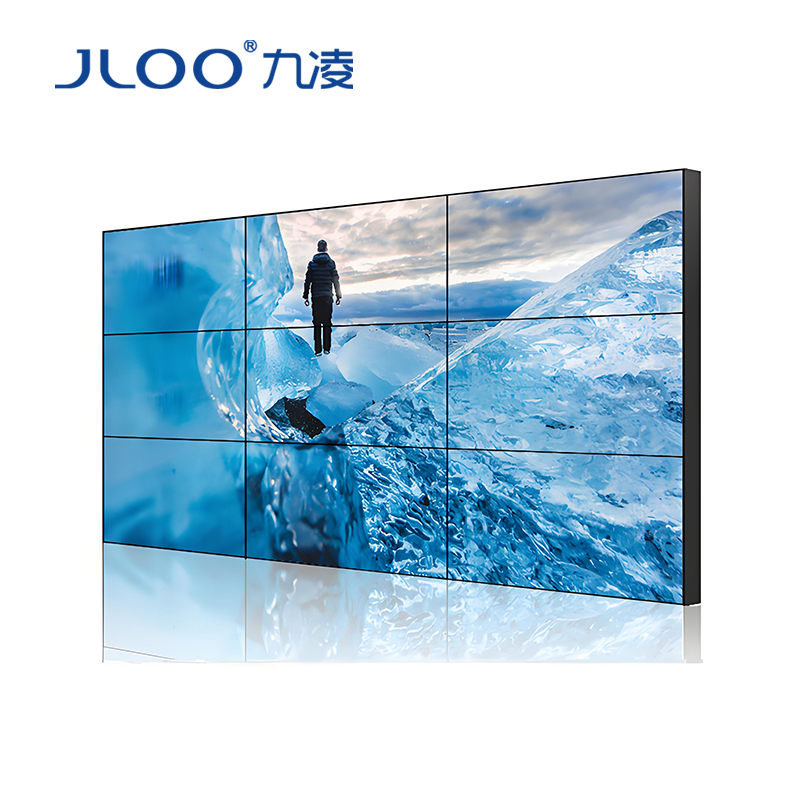

Features of LCD splicing screen products:
Full hardware architecture and professional splicing chip design: This LCD splicing screen adopts a design without CPU and operating system, ensuring its professional splicing performance.
Powerful parallel processing capability: Through multiple parallel processing lines, this screen has excellent processing capabilities.
Integrated multi-channel video signal source: convenient for users to simultaneously access and process multiple video signals.
Remote control and loopback function: Supports RS232 serial port remote control and allows two RS232 loopback ports to meet different needs.
Flexible system integration: Open underlying communication protocols allow users to flexibly adopt third-party central control systems or develop their own software to build large screen engineering systems.
Intelligent upgrade system: Embedded firmware enables intelligent upgrades and maintains technological leadership.
Narrow border and all metal frame design: enhances overall aesthetics while also strengthening structural stability.
Silent industrial grade fan and temperature sensing switch: ensuring stability under long-term use and reducing noise.
3D noise reduction and de interlacing function: optimizes image quality, reduces noise and flicker.
Energy saving, environmental protection, and long-term working ability: Supports 7 * 24-hour uninterrupted work and adapts to various long-term working environments.
Stable image performance: uniform brightness, stable image without flickering, no deformation or distortion, ensuring viewing comfort.
Wall mounted installation and decoration integration: Supports wall mounted installation, saves space, and seamlessly integrates with the wall to enhance overall aesthetics.
Extremely low after-sales demand: The panel technology is stable, and there are almost no quality problems unless there is external collision. The after-sales concept is extremely low.
Tags:
Technical parameter
Screen parameters | Screen size | 49 inches |
| Splicing gap | 3.5mm | |
LED backlight | D-LED | |
Display size | 1076*606(H*V)mm | |
Screen resolution | 1920*1080 | |
Display scale | 16:9 | |
| Contrast ratio | 1200:1 | |
| Response time | 8ms (Typ.) | |
| Display color | 1.07B （8-bit+Hi-FRC) | |
| Refresh rate | 60Hz | |
| Display luminance | 500cd/m²、700cd/m² | |
| Viewing Angle | Horizontal/vertical: 178°/178° | |
| Surface Treatment | Anti-glare,Haze25% | |
interface attributes | Input interface | DVI,VGA,HDMI, AV,USB, RS232,DP,CVBS... |
Output interface | RS232 Serial port,USB | |
Other interfaces | Please contact us to configure the interface type you need | |
Function | CPU | Full hardware architecture, no CPU or operating system |
Language | Chinese, English | |
software | Support roaming and picture in picture functions, support full screen scaling of all windows at any ratio and size, without window ratio or size restrictions | |
Other functions | For example, implementing special display functions such as signal segmentation display, signal decoding, multi-channel signal input, windowing, stacking, cross screen, roaming zoom, etc. Please contact us and we will provide answers based on your actual needs | |
Touch box (optional) | Touch Box | External infrared touch frame, touch strip needs to be spliced on site, does not include tempered glass, tempered glass needs to be prepared on site |
| Touch sensing technology | Infrared sensor recognition touch technology | |
Touch mode | Fingers, stylus or other non-transparent objects not less than 5mm in diameter (multi-point 8mm) | |
| Positioning accuracy | More than 90% of the touch area is ±2mm | |
| Touch Click Count | Theoretically infinite | |
Touch box size | Calculate based on the overall size of the spliced screen wall | |
Machine parameters | Machine size | 1077.58*607.8*113.8mm |
Shell material | Strong metal structure | |
Gross weight | 19.6kg | |
Input voltage | 100 V ~ 240 V/AC，50/60 Hz | |
Operation temperature | 0~60℃RH Non-Condensing | |
Working humidity | 20%～85% RH Non-Condensing | |
Storage temperature | -10℃～60℃Non-Condensing | |
| Storage Humidity | 10%～90% RH Non-Condensing | |
| Installation method | Cabinet type, wall mounted, embedded | |
Accessory | Standard accessories | AC power cord, network cable, hook, remote control, remote receiver head, certificate of conformity, warranty card |
Bracket | Wall mounted brackets, cabinets, hydraulic brackets, curved cabinets, floor standing wall mounted brackets, etc. Equip according to actual scene requirements |
